THE ARCHITECTURAL MISSION

Moving Computation to Memory, and Intelligence to the Edge.

Modern AI is constrained not by algorithms, but by silicon interconnects. JSA LAABS fuses SRAM storage directly with synaptic event-driven processors, delivering on-chip learning with zero off-chip memory thrashing.

THE FUNDAMENTAL THESIS · SCROLL TO READ
ArtificialintelligencehasreachedthelimitsofvonNeumanncomputing.Asmodelsscale,energyisconsumedmovingdatabetweenmemoryandprocessingunitsratherthanthinking.JSALAABSdesignsproprietaryCognitiveProcessingUnitsthatfuseSRAMmemorydirectlywithasynchronousevent-drivenMIMDcompute.Byenablingbio-realisticlocalon-chiplearning,weeliminatecatastrophicforgettingandslashenergyconsumptionbyfiftytimes.Welicensethisarchitecturedirectlyintocustomersilicon.
CONTINUE SCROLLING TO ENTER ARCHITECTURE BREAKDOWN ↓
Neural Silicon Wafer
ACT II · ARCHITECTURE
THE VON NEUMANN BOTTLENECK

The Memory Wall Has Broken Moore's Law.

In standard GPU/TPU architectures, 90% of energy is burned transporting weight tensors between HBM and compute units. NeuroCore fixes this at the physical silicon layer.

CONVENTIONAL ACCELERATORS

Off-Chip HBM Bottleneck

Backpropagation through time (BPTT) demands hundreds of gigabytes of activation cache, causing thermal throttling and high latency.

NEUROCORE PROCESSOR IP

Fused In-Memory Compute

SRAM integrated processing eliminates external memory latency entirely, running localized learning updates in 142 microseconds.

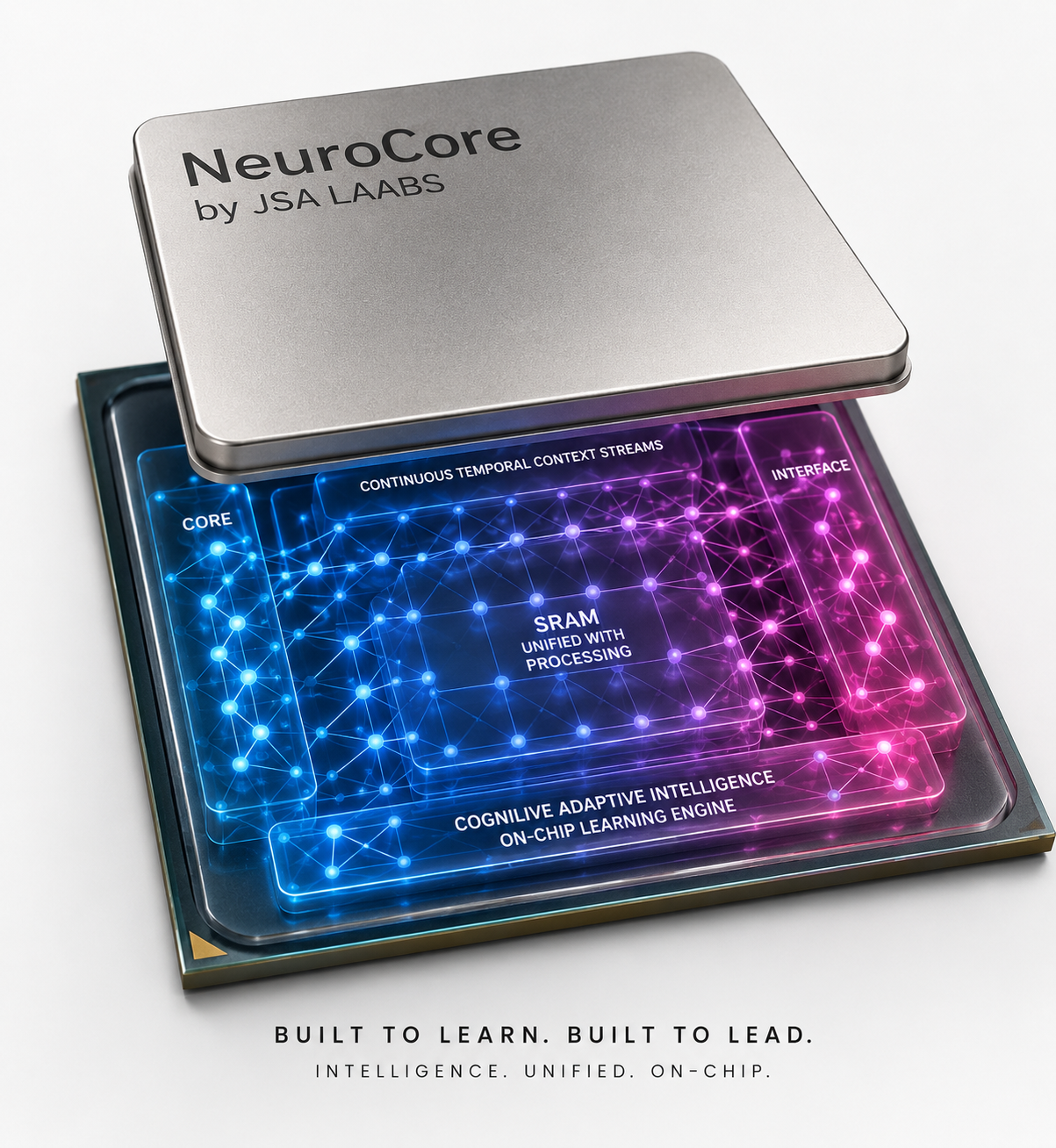

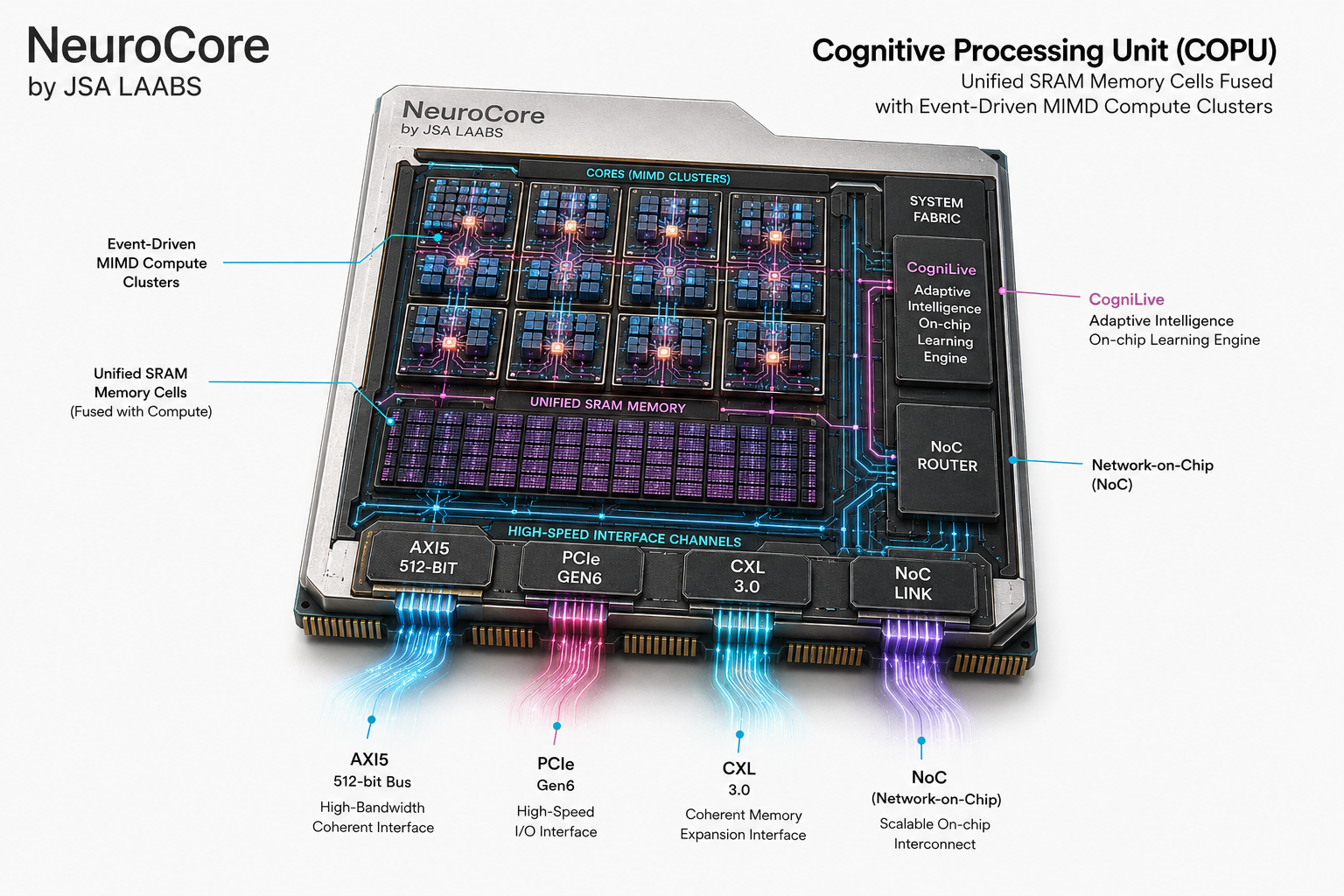

COGNITIVE PROCESSING UNIT (CoPU)

Event-Driven Asynchronously Parallel MIMD

Autonomous multi-core MIMD execution that fires synaptic weights only when events occur, achieving 50× dynamic power reduction.

50×Less Power Draw
30°C–50°CPassive Operating Temp
7nm–45nmNode-Agnostic CMOS
CORE FOUNDATIONS

The Four Pillars of Cognitive Silicon

As you scroll, notice how each pillar directly targets one critical failure mode of legacy neural accelerators:

PILLAR 01MEMORY MATRIX

Unified Memory & MIMD Parallelism

Processing elements fused with SRAM storage execute event-driven threads asynchronously without clock synchronization penalties.

PILLAR 02PLASTICITY

Bio-Realistic Local On-Chip Learning

Weights adapt locally in space and time in 142 microseconds, bypassing global gradient backpropagation memory overhead completely.

PILLAR 03TEMPORAL SCALE

Second-Long Continuous Temporal Context

Maintains multi-second recurrent states natively in silicon memory for World Models, JEPA, and continuous sensor signal tracking.

PILLAR 04SOFTWARE STACK

Backward Compatible PyTorch / TensorFlow

Automated compiler toolchains seamlessly ingest standard PyTorch and TensorFlow networks into synthesized hardware-resident topologies.

Semiconductor Cleanroom Facility
ACT III · VERIFICATION
EMPIRICAL HARDWARE RUNS

Physical Single-Core Telemetry

Extracted directly from physical benchmark runs on a single NeuroCore tile. 142µs on-chip e-prop learning, 0.0ms zero-shot transfer, and zero catastrophic forgetting.

142 µsOn-The-Fly Adaptation
0.0 msZero-Shot Transfer
0.0%Catastrophic Forgetting
10×Perf / Watt vs SOTA
SERIAL CONSOLE: NEUROCORE SINGLE TILE RUNSTATUS: ADAPTED & VERIFIED

> [INIT] Synaptic plasticity core online. Weight buffer: Resident SRAM (0 HBM cycles)

> [TRAIN] E-prop temporal gradient calculated locally in space & time.

> [CONVERGED] On-chip weight update finalized in 142.4 µs. Peak temp: 34.2°C

> [EVAL] Zero-shot task inference latency: 0.00 ms. Memory delta: 0 bytes transferred off-chip.

Autonomous Proving Ground Fleet
ACT IV · THE FRONTLINES
MISSION-CRITICAL SILICON DEPLOYMENT

Engineered for High-Consequence Frontiers

Where cloud connectivity is impossible, thermal ceilings are fixed, and real-time on-chip adaptation is non-negotiable.

🚗
AUTOMOTIVE MOBILITY

Autonomous Vehicles

Real-time cabin monitoring (AIS-184 compliant) and perception sensor fusion adapting continuously to sensor drift and adverse weather.

📡
DEFENSE & AEROSPACE

Electronic Warfare

Microsecond cognitive radio frequency jamming mitigation and radar de-noising in high-threat environments without ground uplink.

🦾
INDUSTRIAL ROBOTICS

Closed-Loop Actuation

Sub-millisecond reflex motor control with micro-joule energy budgets, completely eliminating the need for active cooling.

FABLESS IP FOUNDRY ENGAGEMENT

How Customers License & Integrate NeuroCore

As a fabless semiconductor IP foundry, JSA LAABS licenses complete digital and mixed-signal IP deliverables ready to be dropped into your target ASIC or SoC design flow.

STAGE 01DELIVERABLES

IP Core Deliverable Suite

Synthesizable Verilog / SystemVerilog RTL, cycle-accurate C++ simulation models, timing constraints (SDC), and comprehensive verification testbenches.

STAGE 02INTERCONNECT

Bus & Interconnect Fusion

Standard AXI4, TileLink, and OCP bus wrappers connect directly into host processors, DMA engines, and peripheral sensor interfaces with minimal routing congestion.

STAGE 03SILICON CLOSURE

RTL to GDSII Verification

Proven physical design flows and timing closure verified across 7nm FinFET, 16nm, 28nm, and 45nm standard CMOS process design kits (PDKs).

Cleanroom Horizon
JSA LAABS Logo
COMMENCE ARCHITECTURE ENGAGEMENT

License Adaptive AI Into Your Next Silicon Platform.

JSA LAABS licenses proprietary processor IP cores to fabless semiconductor design teams, Tier-1 automotive OEMs, and defense primes globally.

WE BUILD THE IP. OUR CUSTOMERS BUILD THE SILICON.
